The ViewSonic PA503W offers impressive visual performance in small business meeting rooms and classrooms. With higher brightness and longer lamp life, PA503W projector is guaranteed to reproduce the finest of details in any environment for much longer. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color ensuring true-to-life colors in both bright and dark environments without sacrificing image quality.

Extended Lifespan

Users can choose different lamp mode to extend the lamp’s lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode

Automatic Sleep Timer

Forgetting to shut off projectors is a common occurrence, especially in public spaces such as classrooms and meeting rooms. PA503W’s sleep timer allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.

Auto Power Off

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

Bright Images in Any Environment

4,000 ANSI Lumens of brightness and a 22,000:1 high contrast ratio guarantee the production of bright images in any environment, including rooms with high ambient light.

Amazing Color Vibrancy

ViewSonic’s proprietary SuperColor™ Technology displays a wide range of visible color, ensuring that users enjoy more realistic and accurate color in both bright and dark environments without sacrificing image quality.

Immersive 3D Viewing

PA503W’s HDMI port allows users to project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players.

Instant Activation

Get your projector up and running instantly with two simple settings:

• Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
• Signal Power On: The projector will power on automatically upon detection of a VGA cable connection.

Remote Control Functionality

This projector can be assigned to 8 different remote control codes in the same venue through a single remote control for effortless projector selection, configuration and operation during lessons or meeting. It can also operate certain projectors when the coded are fitted both on the projector and on the remote control.

Advanced Image Correction

Vertical keystone allows you to correct and adjust distorted images with ease, making installation flexible.

Time Management Assistance

Presentation Timer is an embedded on-screen timer that helps users with time management during presentations. Once a specified time limit has been reached, the projector will signal this with a beep, keeping presentations running on time.

Attention Refocusing Capabilities

Using PA503W’s Blank Timer, presenter can refocus the audience’s attention back to them by hiding the screen’s image at different points during a presentation. In addition, Blank Timer can also be used as a reminder for when to take breaks.

Specifications

• Projection System: 0.65" WXGA

• Native Resolution: 1280x800

• Brightness: 4000 (ANSI Lumens)

• Contrast Ratio with SuperEco Mode: 22000:1

• Display Color: 1.07 Billion Colors

• Light Source Type: 200W UHP Lamp

• Light Source Life (hours) with Normal Mode: 6000

• Light Source Life (hours) with SuperEco Mode: 15000

• Lens: F=2.56-2.68, f=22-24.1mm

• Projection Offset: 100%+/-5%

• Throw Ratio: 1.55-1.70

• Optical Zoom: 1.1x

• Digital Zoom: 0.8x-2.0x

• Image Size: 30"-300"

• Throw Distance: 1m-10.98m
  (100"@3.34m)

• Keystone: +/- 40° (V)

• Audible Noise (Normal): 31dB

• Audible Noise (Eco): 27dB

• Input Lag: 16ms

• Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)

• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

• Video Compatibility: NTSC, PAL, SECAM

• Horizontal Frequency: 15K-102KHz

• Vertical Scan Rate: 23-120Hz

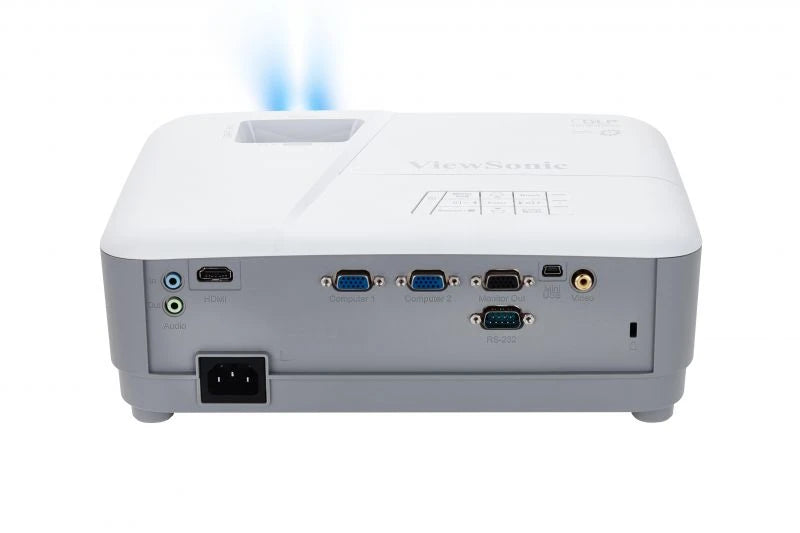

Input

• Computer in (share with component): 2

• Composite: 1

• HDMI: 1

• (HDMI 1.4/ HDCP 1.4)

• Audio-in (3.5mm): 1


Output

• Monitor out: 1

• Audio-out (3.5mm): 1

• Speaker: 2W


Control

• RS232 (DB 9-pin male): 1
• USB Type Mini B (Services): 1

Others

• Power Supply Voltage: 100-240V+/- 10%, 50/60Hz

• (AC in)

• Power Consumption: Normal: 260W

• Standby: <0.5W

• Operating Temperature: 0~40℃

• Carton: Brown

• Net Weight: 2.2kg

• Gross Weight: 3.24kg

• Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm

• Packing Dimensions: 365x300x188mm

• OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian,
• Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese,
• Finnish, Indonesian, Hindi, Arabic, Vietnamese, Total 22 languages

• User Guide Language: English, S-Chinese, T-Chinese, Finnish, French, German,
• Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish,
• Total 15 languages

Standard Accessory

• Power Cord: 1

• VGA Cable: 1

• Remote Control: 1

• QSG: Yes

• Air Filter: Yes (CN Only)

• Warranty Card: Yes (CN Only)


Optional Accessory

• Lamp/Light Source: RLC-109

• Air Filter: RSPL

• Wall/Ceiling Mount: PJ-WMK-007

• Carry Bag: PJ-CASE-008
