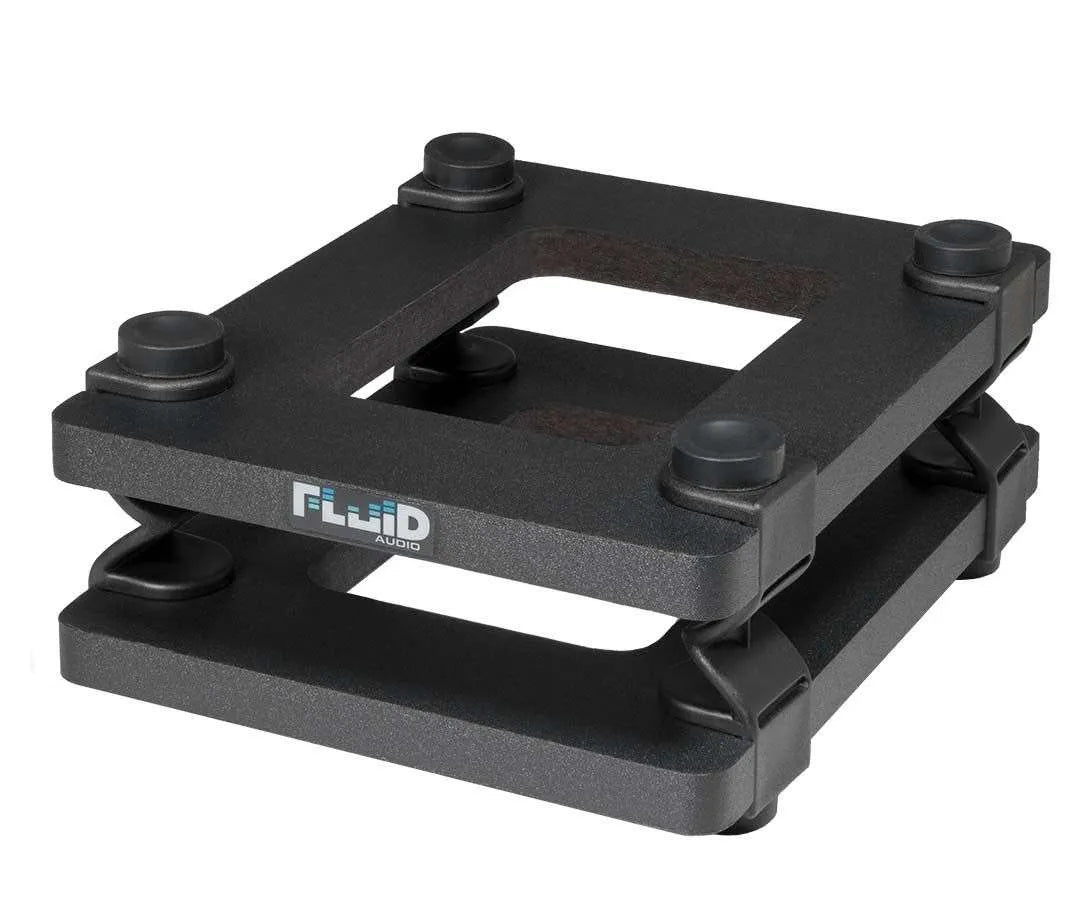

The Fluid Audio DS5 desktop monitor stand is designed for use with 4” and 6” driver loaded studio monitors. They elevate your monitors to one of two heights: 2.5” and 5”. Using custom formulated rubberized silicone feet, the stands provide critical acoustic isolation. Tilt can also be set to one of 3 angles: Flat, 3, and/or 6 degrees of tilt.

Elevating your monitors closer to ear-level means you get better on-axis response. High frequencies coming from tweeters are more directional (or beam-like), so getting them up and closer to ear level means you hear a more full-frequency response.

Made from MDF wood (the same material as your monitor enclosures) they are rugged and acoustically well damped. The “posts” are made from polypropylene, minimizing the “ringing” sound of ABS plastic. Both top and bottom of DS5 and DS8 stands are capped off with highly absorbent, 40 durometer rubber feet using Fluid’s own ‘vibreaker’ technology allowing your monitors to “breathe” and produce purer tones with less distorted midrange.

Specifications

Package Contents	• 8 x 2.5” (63.5mm) short “posts” • 8 x 5” (127mm) tall “posts” • 4 x middle stabilizers • 16 No-angle foot • 8 Tall angle foot • 8 Short angle foot • 16 screws (for mounting posts)
Features	• Fits all 4” and 5” studio monitors • Allows for 2 height adjustments: 2.5” and 5” • Allows for 3 angle adjustments: Flat, 3 deg and 6 deg
Specifications/Material	• Middle stabilizers: Vinyl-laminated MDF • Stands: Polypropylene plastic • Rubber: Highly absorbent, 40 Durometer • Size (packed): 5.94 x 7.44 x 4.5” • Max load 10kg per unit • Weight: 0.9kgs/giftbox
Measures	• Total depth: 185mm • Distance between front and rear rubber support: 130mm • Total width: 142mm • Distance between left and right rubber support: 120mm
