Audient’s top-of-the-line audio interface delivers the performance and value discerning audio professionals demand. This 24-in/32-out USB-C interface culls eight of the company's acclaimed console microphone preamps, two JFET instrument inputs, class-leading 24bit/96kHz converters, ADAT expandability, and a DSP mixer. The mic preamps feature the same circuit design from Audient's renowned ASP8024-HE console with vanishingly low noise and distortion, all while still maintaining the analog character you crave. And with 68dB of gain on tap, you can use your favorite low-output ribbon mic on subdued sources. The unit's two DI inputs provide harmonic enhancement modeled after the input stage of a classic tube amplifier. Performance-packed and ready to rock, the Audient iD48 has impressed our engineers. Put it through the paces during your next session, and you’ll be impressed, too!
The ultimate Audient interface

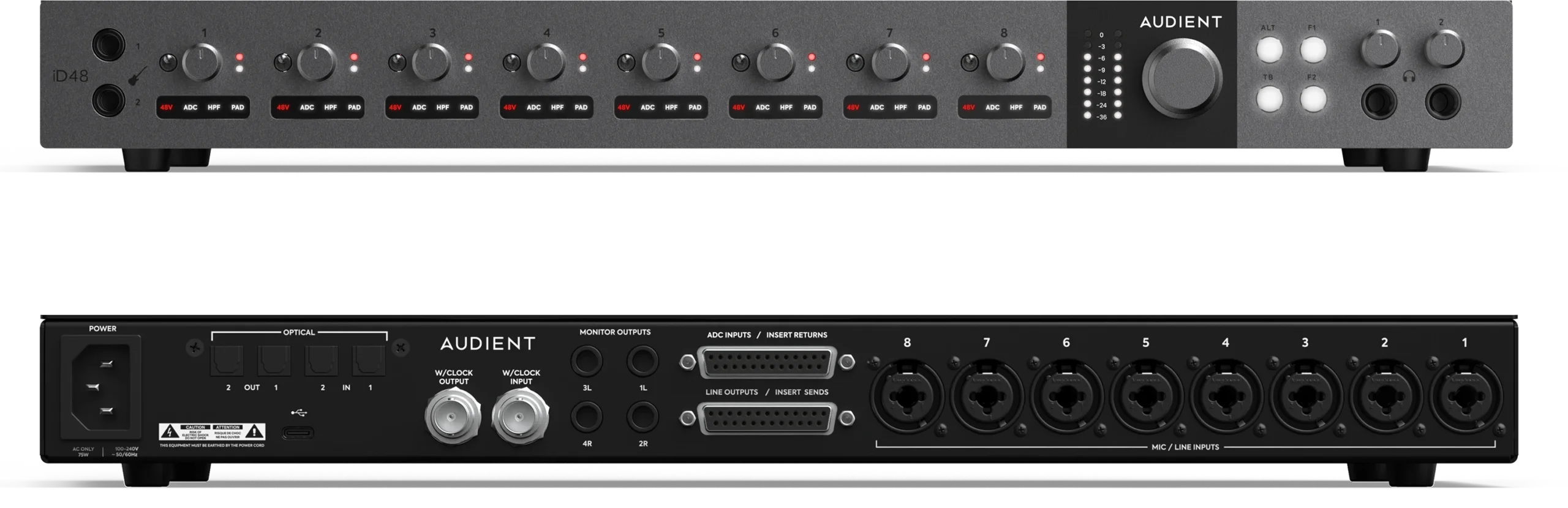

Packing eight state-of-the-art Audient console mic preamplifiers, cutting-edge 32-bit ESS converters, and all-new Switchable Analog Insert technology into a rugged, attractive all-metal 1U chassis, iD48 seamlessly blends blazing audio performance with fluid ease of use. Add to that essential professional features like 16-channel ADAT expandability, eight analog inserts, advanced, customizable monitor control, a seamlessly integrated software mixer, innovative talkback implementation, dual sets of speaker outputs, and much more, and D48 is primed to supercharge your workflow as it elevates the quality of your studio output.
Features
- 24 ix 32 USB-C audio interface
- 24 inputs, 32 outputs (24 simultaneous via USB)
- 8 Audient Class A console mic preamps
- Class-leading AD/DA converters
- 2 discrete JFET instrument inputs
- Main and alt speaker outputs
- 2 independent headphone outputs
- 16-channel ADAT optical I/O
- 8 switchable balanced inserts
- Ultra-low-latency software mixer
- Audio loopback
- ScrollControl
- Dedicated alt speakers and talkback controls
- Innovative talkback functionality doesn’t use
- 2 user-defined function keys
- +48V, Pad, +10dB Boost, Polarity invert and HPF controls
- Word clock I/O
- Standalone mode
- USB 2.0 compliant (24-in/24-out)
- 24bit/96kHz resolution
- Detachable rack ears
- Rugged, attractive all-metal 1U chassis
- Includes free software and plug-ins
Specifications
| Channels of I/O |
24 Inputs / 32 Outputs
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Inputs |
8
|
| Built-In Microphone |
No
|
Signal Processing
| Gain/Trim Range |
Combo XLR-1/4" Mic Inputs:
68 dB
|
Connectivity
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Mic/Line Input
2x 1/4" TS Hi-Z Input
2x 1/4" TRS Headphone Output
4x 1/4" TRS Monitor Output
|
| Phantom Power |
48 V, Selectable On/Off
|
| Digital Audio I/O |
2x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
2x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
|
| Host Connection |
USB-C
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Other I/O |
1x DB-25 Breakout Cable Input (on Non-Included Breakout Cable)
1x DB-25 Breakout Cable Output (on Non-Included Breakout Cable)
|
| Wireless |
No
|
Digital Audio
| Sample Rates |
96 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit (AD/DA Conversion)
32-Bit (Internal DSP)
|
| Sync Sources |
ADAT, Internal, S/PDIF, Word Clock
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| Mobile Device Compatibility |
No
|
Power
| Power Requirements |
AC Input
|
Physical
| Rackmount Size |
1 RU (with Included Hardware)
|
